| Specification
|
| Motion Detection 2.0 |
| Human/Vehicle Analysis 4-ch |
| Video and Audio |
| IP Video Input 16-ch |
| Incoming Bandwidth 160 Mbps |
| Outgoing Bandwidth 80 Mbps |
| HDMI Output |
| 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x |
| 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode HDMI/VGA simultaneous output |
| Audio Output 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding |
| Decoding Format H.265+,H.265,H.264+,H.264 |
| Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback 16-ch |
| Decoding Capability |
| 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
| *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
| Stream Type Video, Video & Audio |
| Audio Compression G.711ulaw/G.711alaw/G.722/G.726 |
| Network |
| Remote Connection 32 |
| Network Protocol |
| TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, |
| UPnP™, HTTP, HTTPS |
| Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE |
| Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power ≤ 150 W |
| Standard IEEE 802.3 af/at |
| Auxiliary Interface |
| SATA 2 SATA interfaces |
| Capacity Up to 8 TB capacity for each disk |
| Alarm In/Out N/A (4/1 is optional) |
| USB Interface 2 × USB 2.0 |
| General |
| Power Supply 100 to 240 VAC, 50 to 60 Hz |
| Consumption ≤ 15 W (without HDD and PoE off) |
| Working Temperature -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity 10% to 90% |
| Chassis 1U chassis |
| Dimension (W × D × H) 385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″) |
| Weight ≤ 2.6 kg (without HDD, 5.7 lb.) |
| Certification |
| FCC Part 15 Subpart B, ANSI C63.4-2014 |
| CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| Note: |
| Alarm in/out can be optional for certain models. If you select a device model with “/ALARM”, then the device will have 4 |
| alarm inputs and 1 alarm output. |

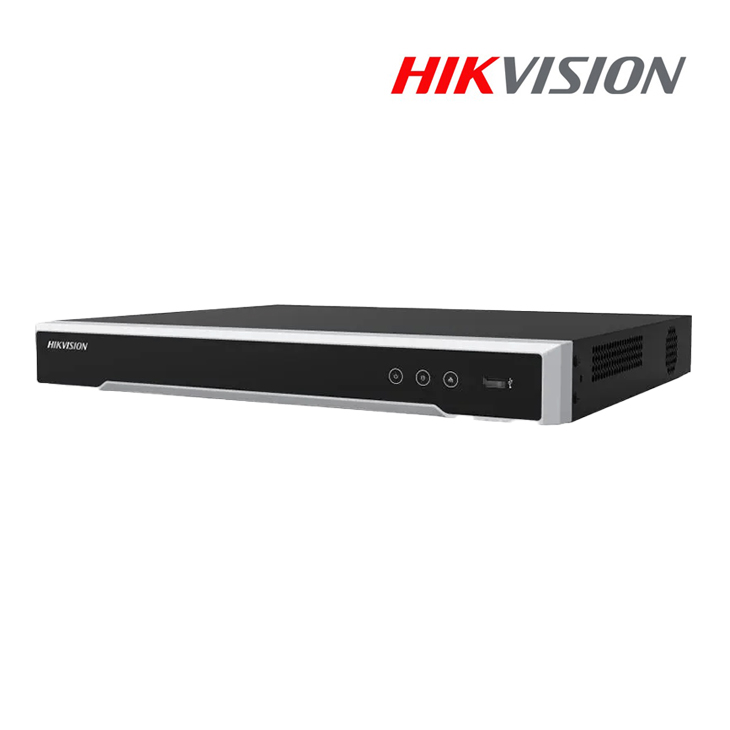

DS-7616NI-Q2/16P
රු114,661.79
| DS-7616NI-Q2/16P |
| Up to 16 channel IP cameras can be connected |
| Supports decoding H.265+/H.265/H.264+/H.264 video formats |
| Up to 4K high-definition live view, storage and playback |
| Up to 4-ch @ 1080p decoding capacity |
| Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected |
| 1 HDMI and 1 VGA interfaces: both interfaces support independent video output |
| 2 HDDs for continuous video recording |
| Compatible with third-party network cameras |
| Plug & Play with 16 Power-over-Ethernet (PoE) interfaces |
