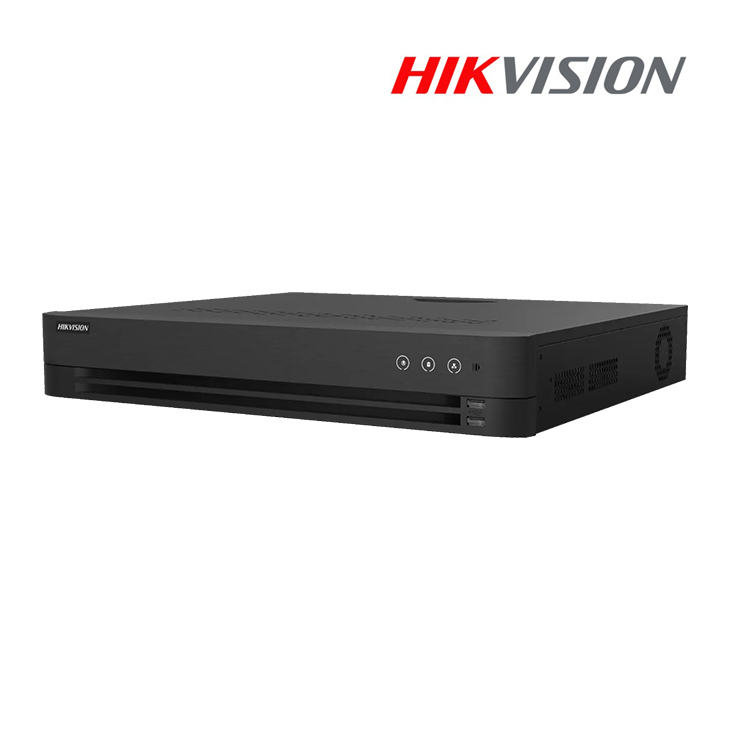

| DS-7716NI-Q4
Specification |
| Video And Audio |
| IP video input16-ch,Up to 8 MP resolution |
| Video resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Incoming/outgoing bandwidth128 Mbps,160 Mbps |
| HDMI output1-ch, 4K (3840 × 2160)/30Hz, ,1920 × 1080p/60Hz, ,1600 × 1200/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz; , |
| VGA output1-ch, 1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz; , |
| Audio output1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio input1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding |
| Decoding formatH.265/H.265+/H.264/H.264+/MPEG4 |
| Recording resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback16-ch |
| Capability1-ch @ 8 MP (30 fps) / 4-ch @ 1080p (30 fps) |
| Network |
| Network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Hard Disk |
| SATA4, SATA interface |
| CapacityUp to 6 TB capacity for each disk |
| External Interface |
| Serial port1 RS-485 (half-duplex), 1 RS-232 |
| USB interfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 2.0 |
| Alarm in/out16/4 (16/8 optional) |
| General |
| Power supply100 to 240 VAC,≤ 80 W |
| Consumption (without HDD)≤ 15 W |
| Working temperature-10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity10 % to 90 % |
| Dimensions (W × D × H)440 × 393 × 75 mm (17.3″ × 15.5″ × 3.0″) |
| Weight (without hard disk)≤ 5 kg (11 lb) |
Previous product
Back to products
DS-7616NI-Q2/16P
රු114,661.79
Next product
DS-7716NI-Q4/16P
රු190,045.82
DS-7716NI-Q4
රු123,200.44
| DS-7716NI-Q4
16-ch 1.5U 4K NVR |
| Up to 16-ch IP camera inputs |
| H.265+/H.265/H.264+/H.264 video formats |
| Up to 1-ch @ 8MP or 2-ch @ 4MP or 6-ch @ 1080P decoding capacity |
| 1 HDMI and 1 VGA interfaces: simultaneous video output |
| Up to 160 Mbps incoming bandwidth |
| 4 HDDs for continuous video recording |
Description
