| Specification
|
|
| Facial Recognition | |
| Face Picture Comparison | |
| Face picture comparison, face picture search (1-ch face picture comparison alarm for | |
| HD analog camera) | |
| Face Picture Library | |
| Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 | |
|
|
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | |
| Deep learning-based motion detection 2.0 is enabled by default for all analog | |
| channels, it can classify human and vehicle, and extremely reduce false alarms caused | |
| by objects like leaves and lights; | |
| Quick search by object or event type is supported; | |
| Perimeter Protection | |
| Human/Vehicle Analysis Up to 2-ch | |
| Recording | |
| Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Encoding Resolution | |
| When 1080p Lite mode is not enabled: | |
| 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; | |
| When 1080p Lite mode is enabled: | |
| 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF | |
| Frame Rate | |
| Main stream: | |
| When 1080p Lite mode not enabled: | |
| For 3K stream access: 3K lite@12fps;4 MP | |
| lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps | |
| For 5 MP stream access: 5 MP lite@12fps;4 MP | |
| lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps | |
| For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps | |
| (P)/30fps (N) | |
| For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps | |
| (N) | |
| For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| When 1080p Lite mode enabled: | |
| 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p | |
| lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Sub-stream: | |
| WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) | |
| Video Bitrate 32 Kbps to 6 Mbps | |
| Dual-stream Support | |
| Stream Type Video, Video & Audio | |
| Audio Compression G.711u | |
| Audio Bitrate 64 Kbps | |
| Video and Audio | |
| IP Video Input | |
| 1-ch (up to 5-ch) | |
| Enhanced IP mode on: | |
| 2-ch (up to 6-ch), each up to 4 Mbps | |
| Up to 6 MP resolution | |
| Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog Video Input | |
| 4-ch | |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| HDTVI Input | |
| 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 | |
| MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps | |
| AHD Input | |
| 5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, | |
| 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps | |
| HDCVI Input | |
| 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, | |
| 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps | |
| CVBS Input PAL/NTSC | |
| CVBS Output | |
| 1-ch, BNC (1.0 Vp-p, 75 Ω), | |
| resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| HDMI Output | |
| 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, | |
| HDMI/VGA simultaneous output | |
| VGA Output | |
| 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, | |
| HDMI/VGA simultaneous output | |
| Audio Input | |
| 1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ) | |
| 4-ch via coaxial cable | |
| Audio Output 1-ch, RCA (Linear, 1 KΩ) | |
| Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Synchronous playback 4-ch | |
| Network | |
| Remote Connection 32 | |
| Total Bandwidth 72 Mbps | |
| Network Protocol | |
| TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, | |
| ONVIF | |
| Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface | |
| Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface | |
| Auxiliary Interface | |
| SATA 1 SATA interface, up to 10 TB capacity for each disk | |
| Serial Interface RS-485 (half-duplex) | |
| USB Interface | |
| Front panel: 1 × USB 2.0; | |
| Rear panel: 1 × USB 2.0 | |
| Alarm In/Out N/A (optional to support) | |
| General | |
| Power Supply 12 VDC, 1.5 A | |
| Consumption ≤ 18 W | |
| Working Temperature -10 °C to 55 °C (14 °F to 131 °F) | |
| Working Humidity 10% to 90% | |
| Dimension (W × D × H) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
| Weight ≤ 1.16 kg (2.6 lb) |

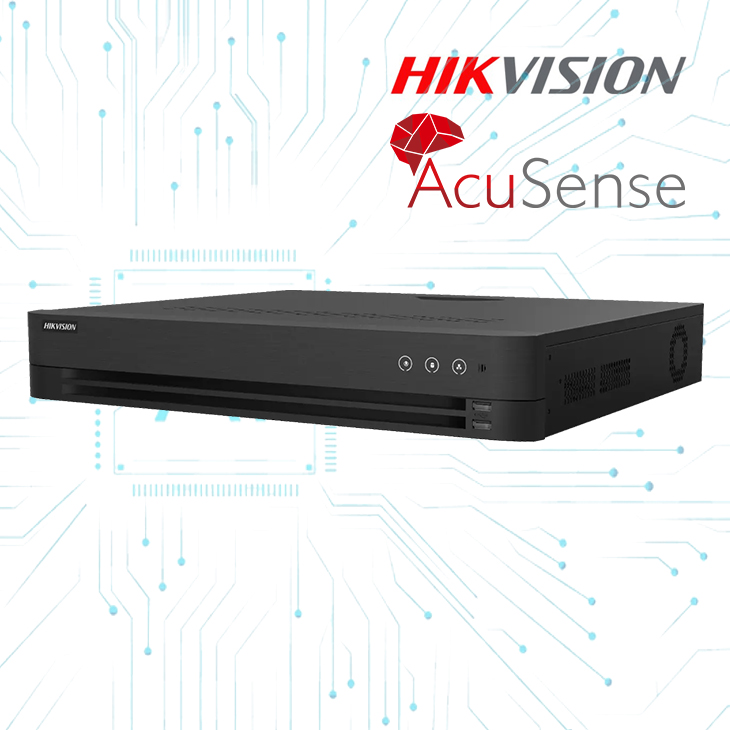

iDS-7204HQHI-M1/FA (Turbo HD X) 2nd Gen AcuSense
රු37,998.00
| iDS-7204HQHI-M1/FA
2nd Gen AcuSense 4-ch 1080p 1U H.265 AcuSense DVR |
| 4 channels and 1 HDD 1U AcuSense DVR |
| Supports false alarm reduction based on deep learning algorithm |
| Efficient H.265 pro+ compression technology |
| Encoding ability up to 1080p @ 15 fps |
| Up to 6 network cameras can be connected |
| 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) |
