| Specification
|
|
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | |
| Deep learning-based motion detection 2.0 is enabled by default for all analog channels, | |
| it can classify human and vehicle, and extremely reduce false alarms caused by objects | |
| like leaves and lights; | |
| Quick search by object or event type is supported; | |
|
|
| Human/Vehicle Analysis Up to 4-ch | |
| Facial Detection | |
| Facial Detection and Capture Face picture detection, face picture search | |
| Recording | |
| Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| Frame Rate | |
| Main stream: | |
| 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps | |
| 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) | |
| Sub-stream: | |
| WD1/4CIF/CIF@25 fps (P)/30 fps (N) | |
| Video Bitrate 32 Kbps to 10 Mbps | |
| Dual-stream Support | |
| Stream Type Video, Video & Audio | |
| Audio Compression G.711u | |
| Audio Bitrate 64 Kbps | |
| Video and Audio | |
| IP Video Input | |
| 4-ch (up to 12-ch) | |
| Up to 8 MP resolution | |
| Enhanced IP mode on: | |
| 8-ch (up to 16-ch), each up to 4 Mbps | |
| Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog Video Input 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| HDMI Output | |
| HDMI: | |
| 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, | |
| 1920 × 1080/60Hz, | |
| 1280 × 1024/60Hz, | |
| 1280 × 720/60Hz | |
| VGA: | |
| 1-ch, 1920 × 1080/60Hz, | |
| 1280 × 1024/60Hz, | |
| 1280 × 720/60Hz | |
| HDMI/VGA simultaneous output | |
| CVBS Input PAL/NTSC | |
| CVBS Output | |
| 1-ch, BNC (1.0 Vp-p, 75 Ω), | |
| resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| Synchronous playback 8-ch | |
| HDTVI Input | |
| 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 | |
| MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 | |
| MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, | |
| 720p@25 fps | |
| AHD Input | |
| 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 | |
| MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps | |
| HDCVI Input | |
| 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 | |
| MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, | |
| 720p@30 fps, 720p@25 fps | |
| Audio Output 1-ch, RCA (Linear, 1 KΩ) | |
| Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Network | |
| Total Bandwidth 128Mbps | |
| Network Protocol | |
| TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, | |
| ONVIF | |
| Remote Connection 64 | |
| Network Interface | |
| 1,RJ45 10M/100M/1000M self-adaptive | |
| Ethernet interface | |
| Auxiliary Interface | |
| SATA 2 SATA interface | |
| Capacity Up to 10 TB capacity for each disk | |
| Serial Interface RS-485 (half-duplex) | |
| USB Interface | |
| 1 × USB 2.0； | |
| 1 × USB 3.0 | |
| Alarm In/Out N/A | |
| General | |
| Power Supply 12 VDC | |
| Consumption ≤ 15 W | |
| Working Temperature -10 °C to +55 °C (+14 °F to +131 °F) | |
| Working Humidity 10% to 90% | |
| Dimension (W × D × H) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) | |
| Weight ≤ 2 kg (4.4 lb) | |
|
Note: |
|
| 1: Motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will | |
| make the other one unavailable. | |
| 2: Enhanced IP mode might be conflicted with smart events (face picture comparison, motion detection 2.0 and | |
| perimeter protection) or other functions, please refer to the user manual for details. | |
| 3: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input | |
| and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and | |
| 4 alarm outputs. If your device only has 1 audio input, the tag may not describe it. |

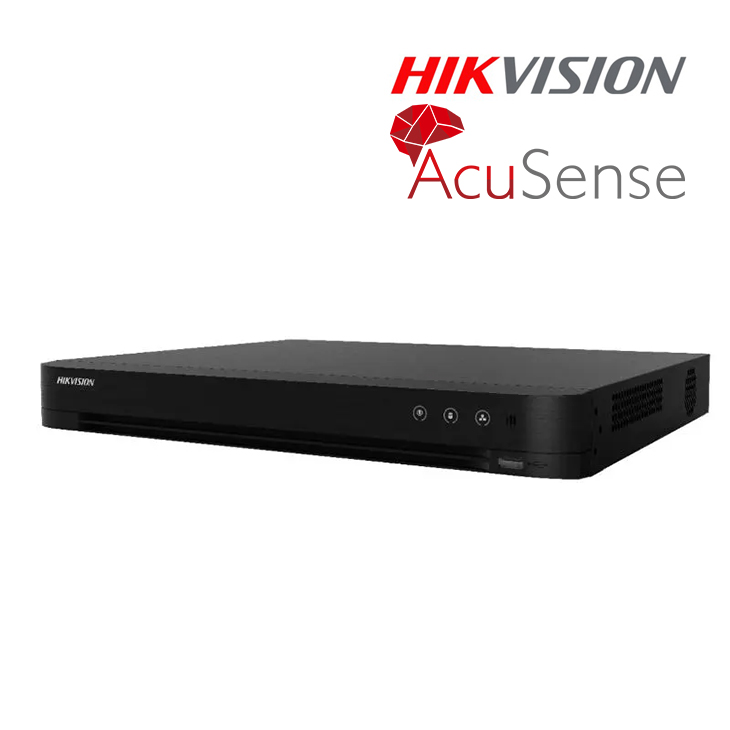

iDS-7208HUHI-M2/S (Turbo HD X) 2nd Gen AcuSense
රු75,394.00
| iDS-7208HUHI-M2/S
(Turbo HD X) 2nd Gen AcuSense 8-ch 5 MP 1U H.265 AcuSense DVR |
| 8 channels and 2 HDDs 1U AcuSense DVR |
| False alarm reduction by human and vehicle target classification based on deep learning |
| Efficient H.265 pro+ compression technology |
| Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps |
| 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) |
| Up to 16 network cameras can be connected. |
