Specification
|
Motion Detection 2.0 |
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, |
it can classify human and vehicle, and extremely reduce false alarms caused by objects |
like leaves and lights; |
Quick search by object or event type is supported; |
Perimeter Protection |
Human/Vehicle Analysis Up to 4-ch |
Facial Detection |
Facial Detection and Capture Face picture detection, face picture search |
Recording |
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Encoding Resolution |
When 1080p Lite mode is not enabled: |
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; |
When 1080p Lite mode is enabled: |
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
Frame Rate |
Main stream: |
When 1080p Lite mode not enabled: |
For 3K stream access: 3K lite@12fps;4 MP |
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps |
For 5 MP stream access: 5 MP lite@12fps;4 MP |
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps |
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps |
(P)/30fps (N) |
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps |
(N) |
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
When 1080p Lite mode enabled: |
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p |
lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
Sub-stream: |
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
Video Bitrate 32 Kbps to 6 Mbps |
Dual-stream Support |
Stream Type Video, Video & Audio |
Audio Compression G.711u |
Audio Bitrate 64 Kbps |
Video and Audio |
IP Video Input |
2-ch (up to 18-ch) |
Up to 6 MP resolution |
Enhanced IP mode on: |
8-ch (up to 24-ch), each up to 4 Mbps |
;Support H.265+/H.265/H.264+/H.264 IP cameras |
Analog Video Input 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
HDMI Output |
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × |
1024/60Hz, 1280 × 720/60Hz |
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
CVBS Input PAL/NTSC |
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), |
resolution: PAL: 704 × 576, NTSC: 704 × 480 |
Synchronous playback 16-ch |
HDTVI Input |
3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 |
MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
AHD Input |
5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, |
1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
HDCVI Input |
5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, |
1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
Audio Output 1-ch, RCA (Linear, 1 KΩ) |
Audio Input 1 |
Audio Input 1 |
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
Network |
Total Bandwidth 128 Mbps |
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, |
ONVIF |
Remote Connection 128 |
Network Interface |
1,RJ45 10M/100M/1000M self-adaptive |
Ethernet interface |
Auxiliary Interface |
SATA 1 SATA interface |
Capacity Up to 10 TB capacity for each disk |
Serial Interface RS-485 (half-duplex) |
USB Interface |
1 × USB 2.0; |
1 × USB 3.0 |
Alarm In/Out N/A |
General |
Power Supply 12 VDC |
Consumption ≤ 24 W |
Working Temperature -10 °C to +55 °C (+14 °F to +131 °F) |
Working Humidity 10% to 90% |
Dimension (W × D × H) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
Weight ≤ 2 kg (4.4 lb) |
Note: |
1: Motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will |
make the other one unavailable. |
2: Enhanced IP mode might be conflicted with smart events (motion detection 2.0 and perimeter protection) or |
other functions, please refer to the user manual for details. |
3: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input |
and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and |
4 alarm outputs. If your device only has 1 audio input, the tag may not describe it. |

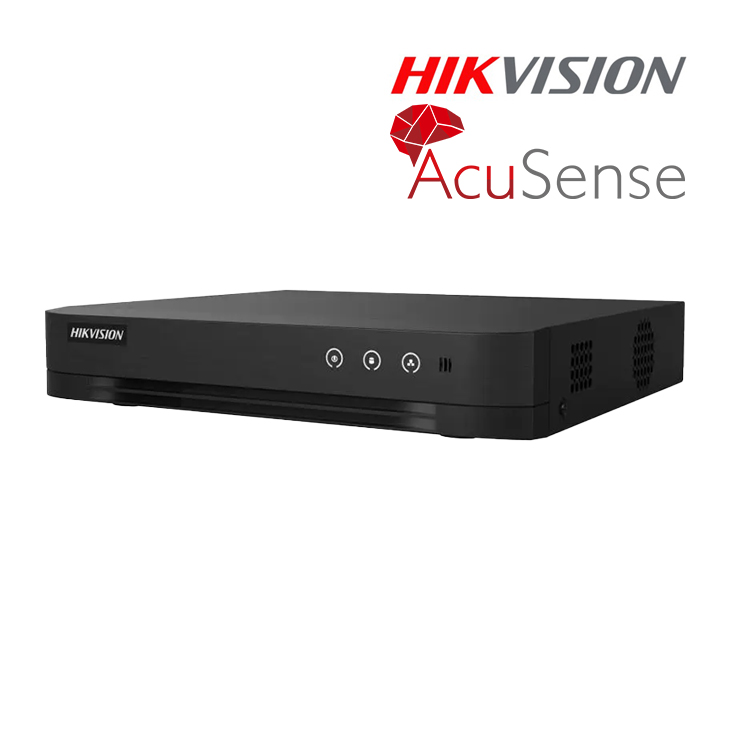

iDS-7216HQHI-M1/S (Turbo HD X) 2nd Gen AcuSense
රු90,824.00
iDS-7216HQHI-M1/S
(Turbo HD X) 2nd Gen AcuSense 16-ch 1080p 1U H.265 AcuSense DVR |
16 channels and 1 HDD 1U AcuSense DVR |
False alarm reduction through human and vehicle target classification based on deep learning |
Efficient H.265 pro+ compression technology |
Encoding ability up to 1080p @ 15 fps |
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) |
Up to 24 network cameras can be connected. |
Category: DVR
