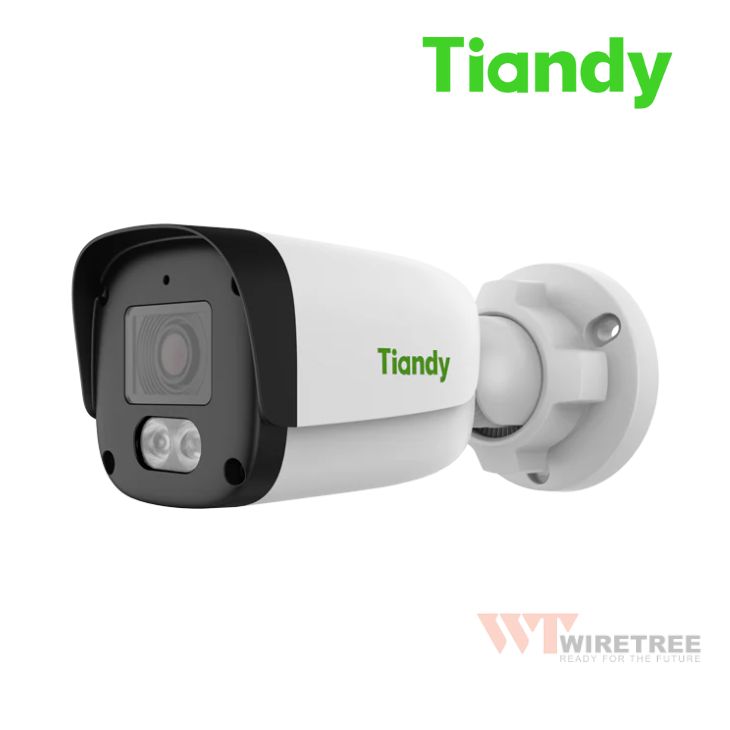

TC-C34QN 4MP / 30m / 4mm

SPECIFICATIONS

Image Sensor 1/3″CMOS
Min. Illumination Color:0.001Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
Smart IR Yes
WDR DWDR
S/N >52dB
Angle Adjustment 0~360°(P); 0~80°(T); 0~360°(R)
Lens
Lens Type Fixed focal lens
Focal Length 4mm
Lens Mount M12
Aperture Range F1.6
Aperture Type Fixed
Field of View 79°(H); 42.2°(V); 91°(D)

DORI Distance

Detect:80.0m
Observe:31.8m
Recognize:16.0m
Identify:8.0m

Illuminator
IR LEDs 2
IR Distance Up to 30m
Wavelength 850nm
White LEDs 2
Whitelight Distance Up to 15m
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~6Mbps
Audio Compression G.711A/G.711U
Audio Sampling Rate 8kHz
Max. Resolution 4MP,2560×1440@30fps
Main Stream

PAL:25fps(2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC:30fps(2560×1440, 2304×1296, 1920×1080, 1280×720)

Sub Stream

PAL:25fps(704×576, 704×288, 640×360, 352×288)
NTSC:30fps(704×480, 704×240, 640×360, 352×240)

BLC Yes

2025.05.21

HLC Yes
AGC Yes
3D DNR Yes
White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock
White Balance

OSD

Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters;
16*16/32*32/48*48/64*64; Lattice

Privacy Mask 4 black static areas
Defog Yes
Feature
General Alarm Smart Alarm(human and vehicle detection)
Exceptions Alarm IP Address Conflict
Linkage Method Trigger Capture
Network
Protocols RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast
System Compatibility P2P(Mutually exclusive with Onvif); ONVIF(Profile S/T) ; SDK; CGI; Milestone
Remote Connection ≤2
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface
Communication Interface 1×RJ-45 (10/100 Base-T)
Built-in Mic 1×Built-in Mic
General
Web Client Language

12 languages
English/Spanish/Italian/Turkish/Russian/Thai/French/Polish/Arabic/Vietnamese/Portuguese/Japanese

Operating Temperature -30°C~60°C(-22°F~140°F)
Operating Humidity ≤95%RH
Storage Temperature -30°C~60°C(-22°F~140°F)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply PoE:IEEE 802.3af,Max. 4W
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 164(L)73(W)73(H)mm
Package Dimensions 180(L)90(W)95(H)mm
GrossWeight 0.3kg
