Specification
|
|
Model iDS-7204HUHI-M1/FA iDS-7208HUHI-M1/FA | |
Face Picture Comparison and Search¹ | |
Face picture | |
comparison | |
Face picture comparison, face picture search (1-ch face picture comparison alarm for HD | |
analog camera) | |
|
|
Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, | |
total capacity ≤ 80 MB) | |
Motion Detection 2.0¹ | |
Human/Vehicle | |
Analysis | |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it | |
can classify human and vehicle, and extremely reduce false alarms caused by objects like | |
leaves and lights; | |
Quick search by object or event type is supported; | |
Perimeter Protection¹ | |
Human/Vehicle | |
Analysis | |
Up to 4-ch | |
Recording | |
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
Encoding resolution | |
Main stream: | |
8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 | |
MP@15 fps/8 MP Lite@15 fps/3 MP@18 | |
fps | |
1080p/720p/WD1/4CIF/VGA/CIF@25 fps | |
(P)/30 fps (N) | |
*: 8 MP@8 fps is only available for | |
channel 1, 8 MP Lite is only available for | |
channel 2 to channel 4. | |
Main stream: | |
8 MP@8 fps/5 MP@12 fps/3K@12 fps /4 | |
MP@15 fps/3 MP@18 fps | |
1080p/720p/WD1/4CIF/VGA/CIF@25 fps | |
(P)/30 fps (N) | |
Sub-stream: | |
WD1/4CIF/CIF@25 fps (P)/30 fps (N) | |
Video bitrate 32 Kbps to 10 Mbps | |
Dual stream Support | |
Stream type Video, Video & Audio | |
Audio compression G.711u | |
Audio bitrate 64 Kbps | |
Video and Audio | |
IP video input2 | |
2-ch (up to 6-ch) | |
Enhanced IP mode on: | |
4-ch (up to 8-ch), each up to 4 Mbps | |
4-ch (up to 12-ch) | |
Enhanced IP mode on: | |
8-ch (up to 16-ch), each up to 4 Mbps | |
Up to 8 MP resolution | |
Support H.265+/H.265/H.264+/H.264 IP cameras | |
Analog video input | |
4-ch 8-ch | |
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
HDTVI input | |
8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4 | |
MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, | |
1080p@30 fps, 1080p@25 fps, 720p@60 | |
8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4 | |
MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, | |
1080p@30 fps, 1080p@25 fps, 720p@60 | |
fps, 720p@50 fps, 720p@30 fps, | |
720p@25 fps | |
fps, 720p@50 fps, 720p@30 fps, 720p@25 | |
fps | |
AHD input 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps | |
HDCVI input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps | |
CVBS input PAL/NTSC | |
CVBS output | |
1-ch, BNC (1.0 Vp-p, 75 Ω), | |
resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
VGA output | |
1-ch, 1920 × 1080/60Hz, | |
1280 × 1024/60Hz, | |
1280 × 720/60Hz, | |
HDMI/VGA simultaneous output | |
1-ch, 1920 × 1080/60Hz, | |
1280 × 1024/60Hz, | |
1280 × 720/60Hz, | |
HDMI/VGA simultaneous output | |
HDMI output | |
1-ch, 2K (2560 × 1440)/60Hz, | |
1920 × 1080/60Hz, | |
1280 × 1024/60Hz, | |
1280 × 720/60Hz, | |
1024 × 768/60Hz | |
HDMI/VGA simultaneous output | |
1-ch, 4K (3840 × 2160)/30Hz, | |
2K (2560 × 1440)/60Hz, | |
1920 × 1080/60Hz, | |
1280 × 1024/60Hz, | |
1280 × 720/60Hz, | |
1024 × 768/60Hz | |
HDMI/VGA simultaneous output | |
Audio input3 | |
1-ch (up to 4-ch is optional), RCA (2.0 Vpp, 1 KΩ) | |
1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, | |
1 KΩ) | |
4-ch via coaxial cable 8-ch via coaxial cable | |
Audio output 1-ch, RCA (Linear, 1 KΩ) | |
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
Synchronous playback 4-ch 8-ch | |
Network | |
Remote connections 32 64 | |
Network protocols | |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, | |
ONVIF | |
Network interface | |
1, RJ45 10/100 Mbps self-adaptive | |
Ethernet interface | |
1, RJ45 10/100/1000 Mbps self-adaptive | |
Ethernet interface | |
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface | |
Auxiliary interface | |
SATA 1 SATA interface | |
Capacity Up to 10 TB capacity for each disk | |
Serial interface RS-485 (half-duplex) | |
USB interface | |
Front panel: 1 × USB 2.0 | |
Rear panel: 1 × USB 2.0 | |
Front panel: 1 × USB 2.0 | |
Rear panel: 1 × USB 3.0 | |
Alarm in/out3 N/A (optional to support) | |
General | |
Power supply 12 VDC, 1.5 A 12 VDC, 2 A | |
Consumption (without | |
HDD) | |
≤ 10 W ≤ 15 W | |
Working temperature -10 °C to +55 °C (+14 °F to +131 °F) | |
Working humidity 10% to 90% | |
Dimension (W × D × H) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
Weight (without HDD) ≤ 1.16 kg (2.6 lb) ≤ 2 kg (4.4 lb) | |
Note: |
|
1: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. | |
Enable one function will make the other two unavailable. | |
2: Enhanced IP mode might be conflicted with smart events (face picture comparison, motion detection 2.0 and | |
perimeter protection) or other functions, please refer to the user manual for details. | |
3: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input | |
and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and | |
4 alarm outputs. If your device only has 1 audio input, the tag may not describe it. |

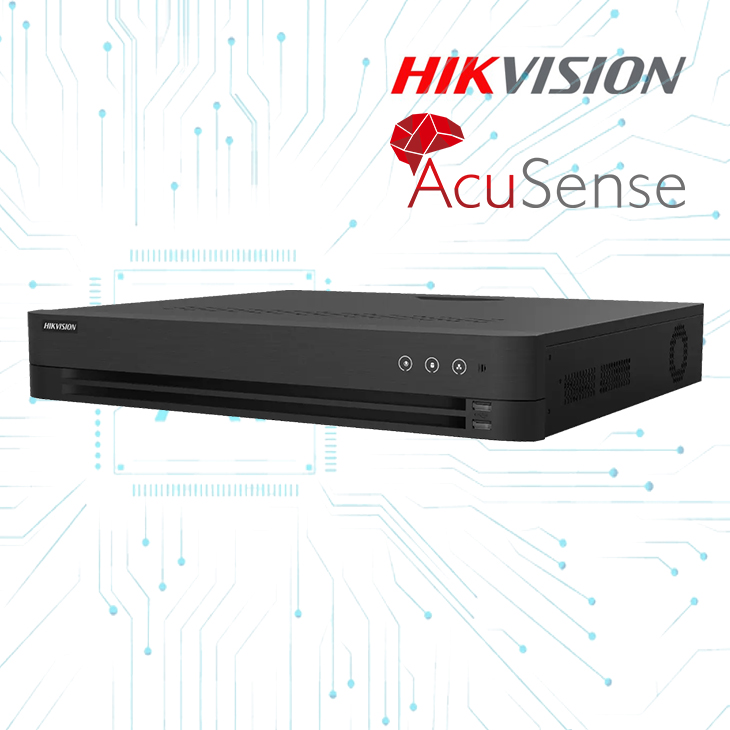

iDS-7204HUHI-M1/FA (Turbo HD X) 2nd Gen AcuSense
රු55,607.00
iDS-7204HUHI-M1/FA
2nd Gen AcuSense 4-ch 5 MP 1U H.265 AcuSense DVR |
|
4 channels and 1 HDD 1U AcuSense DVR | |
Supports false alarm reduction based on deep learning algorithm | |
Efficient H.265 pro+ compression technology | |
Encoding ability up to 4K @ 7.5 fps/ 3K@12fps | |
Up to 6 network cameras can be connected | |
|
Category: DVR
