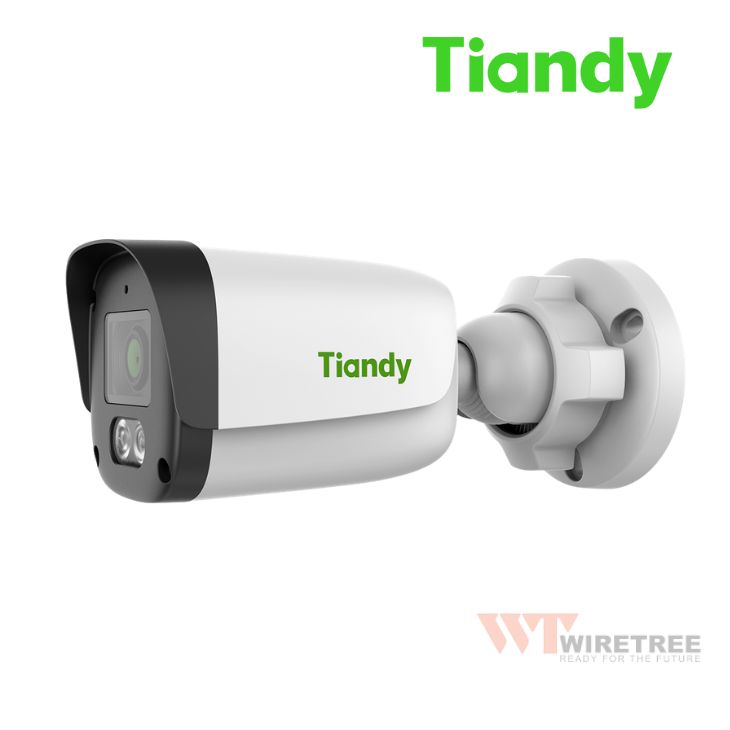

TC-C32WS 2MP / 50m / 2.8mm

SPECIFICATIONS

Image Sensor 1/2.7″CMOS
Min. Illumination Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
Smart IR Yes
WDR 120dB
S/N >42dB
Angle Adjustment 0~360°(P); 0~90°(T); 0~360°(R)
Lens
Lens Type Fixed focal lens
Focal Length 2.8mm
Lens Mount M12
Aperture Range F1.6
Aperture Type Fixed
Field of View 100.3°(H); 54.5°(V); 116.1°(D)
DORI Distance Detect:38.6m
Observe:15.3m
Recognize:7.7m
Identify:3.8m

Illuminator
IR LEDs 2
IR Distance Up to 50m
Wavelength 850nm
White LEDs 2
Whitelight Distance 15m
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~6Mbps
Audio Compression G.711A/G.711U/ADPCM_D
Audio Sampling Rate 8kHz/32kHz/48kHz
Max. Resolution 2MP,1920×1080@30fps
Main Stream PAL:25fps(1920×1080, 1280×720, 704×576)
NTSC:30fps(1920×1080, 1280×720, 704×480)
Sub Stream PAL:25fps(704×576, 704×288, 640×360, 352×288)
NTSC:30fps(704×480, 704×240, 640×360, 352×240)

BLC Yes
HLC Yes
AGC Yes
3D DNR Yes

2025.02.28

White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock

White Balance
ROI 8 rectangular static areas
OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese

characters per region; 16*16/32*32/48*48; Lattice

Privacy Mask 4 black static areas
Defog Yes
Feature
General Alarm Motion Detection; Mask Alarm
Exceptions Alarm Disk Full; Disk R/W Error; IP Address Conflict; Network Disconnection
Linkage Method Trigger Recording; Trigger Capture; Notify Surveillance Center
Video Analytics Human/Vehicle Classification; Tripwire; Perimeter
Rules of Behavior Analyse In 1
Scene

2

Network
ANR Yes
Protocols RTSP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; TLS v1.2; QoS; IPv4;

SSH; Unicast; Multicast; ARP; FTP

System Compatibility P2P(Mutually exclusive with Profile G); ONVIF(Profile S/T/G) ; SDK; CGI; Milestone
Remote Connection ≤2
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface
Communication Interface 1×RJ-45 (10/100 Base-T)
Built-in Mic 1×Built-in Mic
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB
RTC Yes
General
Web Client Language 20 languages

Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/
Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian/Greek

Operating Temperature -35°C~65°C(-31°F~149°F)
Operating Humidity ≤95%RH
Storage Temperature -35°C~65°C(-31°F~149°F)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 6W; PoE:IEEE 802.3af,Max. 7W
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 161(L)68(W)66(H)mm
Package Dimensions 215(L)95(W)120(H)mm
GrossWeight 0.614kg
