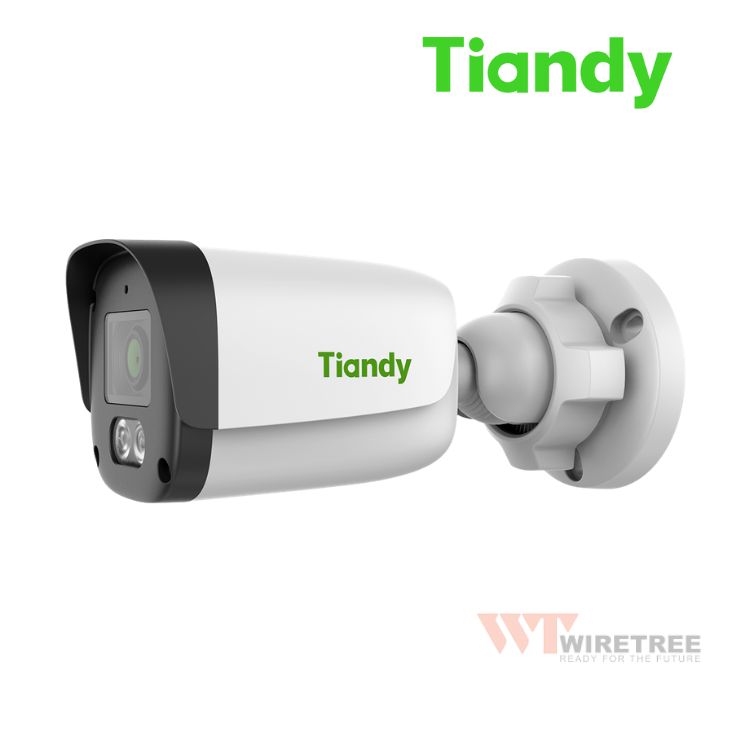

TC-C32QV-2MP / 2.8mm

SPECIFICATIONS

Image Sensor 1/2.9″CMOS
Min. Illumination Color:0.0002Lux@(F1.0,AGC ON)
Shutter Time 1s~1/100000s
Smart IR Yes
WDR WDR
S/N >48dB
Angle Adjustment 0~360°(P); 0~80°(T); 0~360°(R)
Lens
Lens Type Fixed focal lens
Focal Length 2.8mm
Lens Mount M12
Aperture Range F1.0
Aperture Type Fixed
Field of View 99°(H); 53.4°(V); 116.3°(D)

DORI Distance

Detect:40.0m
Observe:15.9m
Recognize:8.0m
Identify:4.0m

Illuminator
White LEDs 2
Whitelight Distance Up to 15m
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~4Mbps
Audio Compression G.711A/G.711U
Audio Sampling Rate 8kHz
Max. Resolution 2MP,1920×1080@30fps
Main Stream

PAL:25fps(1920×1080, 1280×720)
NTSC:30fps(1920×1080, 1280×720)

Sub Stream

PAL:25fps(704×576, 704×288, 640×360, 352×288)
NTSC:30fps(704×480, 704×240, 640×360, 352×240)

BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock
White Balance

2025.04.23

OSD

Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese
characters per region; 16*16/32*32/48*48; Lattice

Privacy Mask 4 black static areas
Defog Yes
Feature
Exceptions Alarm IP Address Conflict
Linkage Method Trigger Capture
Video Analytics Smart Alarm
Network
Protocols RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast
System Compatibility ONVIF(Profile S/T) ; SDK; CGI; Milestone
Remote Connection ≤2
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface
Communication Interface 1×RJ-45 (10/100 Base-T)
Built-in Mic 1×Built-in Mic
General
Web Client Language

12 languages
English/Spanish/Italian/Turkish/Russian/Thai/French/Polish/Arabic/Vietnamese/Portuguese/Japanese

Operating Temperature -30°C~60°C(-22°F~140°F)
Operating Humidity ≤95%RH
Storage Temperature -30°C~60°C(-22°F~140°F)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 4.5W; PoE:IEEE 802.3af,Max. 6W
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 164(L)73(W)73(H)mm
Package Dimensions 180(L)90(W)95(H)mm
GrossWeight 0.32kg
